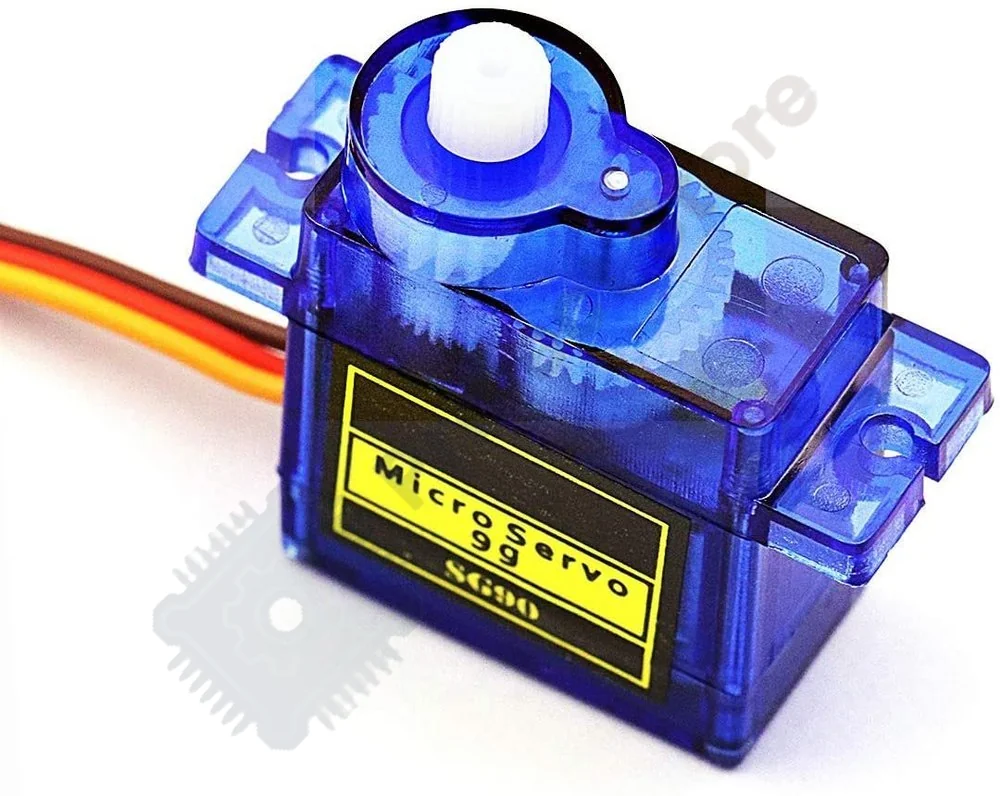

Towerpro Sg90 Sg 90 180 Degree Servo Motor

TowerPro SG90 180° Micro Servo Motor:
The TowerPro SG90 is a lightweight, compact, and high-performance 9g micro servo motor designed for precise angular motion control in robotics, RC vehicles, drones, and automation projects. With a rotation range of 0° to 180°, it provides smooth and reliable movement, making it one of the most popular choices for Arduino and microcontroller-based applications.
Built with durable plastic gears and a coreless DC motor, the SG90 offers an excellent balance of torque, speed, and size, suitable for lightweight mechanisms like robot arms, pan-tilt cameras, and small-scale actuators. It is widely compatible with control boards such as Arduino, Raspberry Pi, ESP8266, and ESP32, and can be easily interfaced using PWM (Pulse Width Modulation) signals.

Key Features:
>> Model: TowerPro SG90
>> Operating Voltage: 4.8V – 6.0V
>> Stall Torque: 1.8 kg·cm (at 4.8V)
>> Operating Speed: 0.1 s/60° (at 4.8V)
>> Rotation Angle: 180° (±10°)
>> Weight: 9 grams
>> Gear Type: Plastic gears
>> Motor Type: Coreless DC motor
>> Connector Type: 3-pin (PWM signal, VCC, GND)
>> Cable Length: ~25 cm

Applications:
>> Arduino and IoT projects
>> Robotics and mechatronics systems
>> RC airplanes, helicopters, and cars
>> Robotic arms and grippers
>> Pan-tilt camera platforms
>> Automation and motion control mechanisms

Advantages:
>> Compact and lightweight for easy integration
>> Precise position control via PWM signal
>> Low power consumption
>> Compatible with most microcontrollers
